1100 / 1300 mm Length Pallet Rack Storage Systems Q235B Steel Master Shuttle

Name: 1100 1300 mm Length Pallet Rack Storage Systems Q235B Steel Master Shuttle
Brand: HUADE
Price: 1 USD

China 1100 / 1300 mm Length Pallet Rack Storage Systems Q235B Steel Master Shuttle wholesale

Brand Name : HUADE

Model Number : HD-MSRS-2

Certification : R-mark / ISO 9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : around 43,000 tons per year

Delivery Time : around 7-8 weeks upon receipt the signed, stamped PO and deposit

Packaging Details : Export packaging, wrapped by plastic films and strips and electric members packed by plywood boxes

Product Name : Master Shuttle

Alternative Name : Pallet mover

Load capacity : 1000 ~ 1500 kg per pallet

Steel : Q235B and well-known electric parts

Standards : RMI / FEM

Size : according to the size of the pallet

Contact Now

1100 / 1300 mm Length Pallet Rack Storage Systems Q235B Steel Master Shuttle

Technical Parameters on Master Shuttle:

Master Shuttle type		Non-transfer type		Transfer type
Master Shuttle code		NDCSZS		NDCSZM
Master Shuttle power supply		Conductor	Battery	Conductor	Battery
Load capacity ≤		1500	1500	1500	1500
Pallet length mm		1100 1300	1100 1300	1100 1300	1100 1300
Speed	Master Shuttle unloaded m/s≤	2.5	1.5	2.5	1.5
	Master Shuttle fully loaded m/s ≤	2.0	1.0	2.0	1.0
	Shuttle unloaded m/s ≤	1.0	0.9	1.0	0.9
	Shuttle fully loaded m/s ≤	0.6	0.5	0.6	0.5
Motor power	Master Shuttle drive motor KW	2.2(AC380V)	1.5(DC48V)	2.2(AC380V)	1.5(DC48V)
	Master Shuttle chain motor KW	0.4(AC380V)	0.4(DC48V)	0.4(AC380V)	0.4(DC48V)
	Shuttle drive motor KW ＞	0.4	0.4	0.4	0.4
	Shuttle lifting motor KW ＞	0.37	0.37	0.37	0.37
Master Shuttle battery	Battery capacity Ah		80		80
	Continous working hours on a single charge H		8		8
	Charging time H ≤		8		8

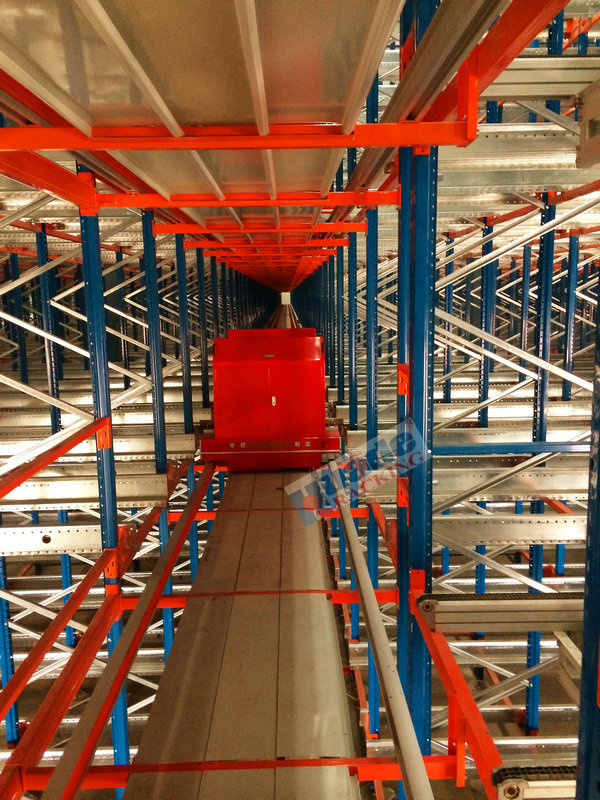

Master Shuttle:

1100 / 1300 mm Length Pallet Rack Storage Systems Q235B Steel Master Shuttle

FQA

1. Q: What is the raw material of your products?
A: Q235B, other material is also available based on the requirements.

2. Q: What is the term of payment?
A: 30% depoisit by T/T and balance upon receipt the copy of BL.

3. Q: What is delivery time?
A: Simple and standard products: within 20 or 25 days upon receipt the deposit. Complicated and Automated storage systems: within 40 to 50 days upon receipt the deposit.

4. Q: Which port will be used as loading port?
A: We are closed to Nanjing port. All the products will be shipped by the feeder vessal from Nanjing port to Shanghai port to catch the mother vessel there. If you need the goods to be shipped quickly, we are able to send the goods by trailer on road to Shanghai.

5. Q: May I know the status of my order?
A: Yes of course. We will let you know the status of the order and send pictures.

6. Q: Are samples available?
A: Yes,samples are available. We provide the small sized samples free of charge but without freight. For some complete samples, we charge them but will refund by next order.

7. Q: Is Galvanized Finish available for pallet racks?
A: Yes, the pallet rack uprights, horizontal braces, diagonal braces, base plates, shim plates can be galvanized.
